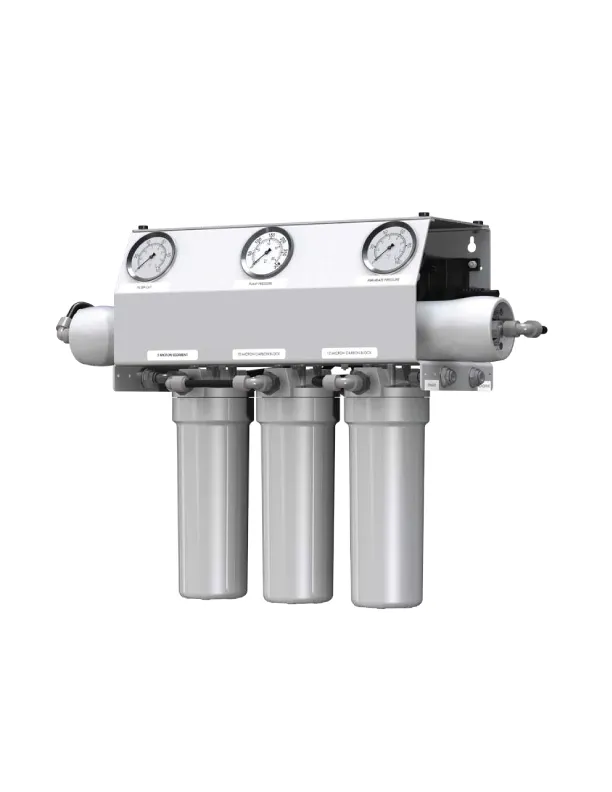

Flexeon L1-300 Reverse Osmosis System
Engineered for capacities ranging up to 300 gallons per day and feed water up to 1000 TDS.The FLEXEON L1-300 is designed for overall high performance, high recovery rates, minimal energy consumption and offer great savings with low maintenance and operation costs. It also features a compact space saving design, excellent pre-filtration and quality components built in the U.S.A. If you are looking for a premium system at a very economical price, this is simply the best solution.
Benefits
- Fully Equipped, Customizable and Economical
- Expandable and Lightweight Design
- Pre-Plumbed, Wired & Assembled
- Compact Space Saving Design
- Components Easily Accessible
- Pre-Plumbed, Wired and Assembled - Turn Key
- Easy Maintenance & Servicing
- CE Compliant
- 1-Year Limited Warranty
- Made in the U.S.A.
Look at All These Features
- White Powder Coated Aluminum Frame
- 5 Micron Sediment Pre-filter
- 10 Micron Carbon Block Pre-filter and Post-Filter
- Pentek Filter Housings
- AXEON® Fiberglass Membrane Housing
- 0-300 psi Glycerin-Filled Pump Pressure Gauge
- 0-100 psi Glycerin-Filled Pre-Filter Pressure Gauge
- 0-100 psi Glycerine-Filled Permeate Pressure Gauge
- John Guest® Push/Pull fittings with Locking Safety Clips
- Aquatec® High Flow Booster Pump
- Aquatec® Tank Pressure Switch
- Aquatec® Feed Solenoid Valve
- Aquatec® Auto Flush Timer Valve
Options and Upgrades
- 10" or 20" Filter Housings
- 10" or 20" Floor stand
Specifications
| Design | |
|---|---|
| Configuration | Single Pass |
| Feed Water Source | TDS < 1000 |
| Standard Recovery Rate | 50% |
| Rejection and Flow Rates | |
| Nominal Salt Rejection % | 98.5 |
| Permeate Flow* gpm (lpm) | 0.21 (0.79) |
| Concentrate Flow gpm (lpm) | 0.21 (0.79) |
| Connections | |
| Feed inch | 3/8 Tube |
| Permeate inch | 3/8 Tube |
| Concentrate inch | 3/8 Tube |
| Membranes | |
| Membranes(s) Per Vessel | 1 |
| Membrane Quantity | 1 |
| Membrane Size | 2521 |
| Vessels | |
| Vessel Array | 1 |
| Vessel Quantity | 1 |
| Pumps | |
| Pump Type | Aquatec 5800 |
| Electrical** | |
| Standard Voltage | 110V 60Hz 1 PH |
| Voltage Amp Draw | 1.0 |
| Systems Dimensions *** | |
| L x W x H inch (cm) | 9 x 27 x 19 (22.9 x 68.6 x 48.3) |
| Weight lb. (kg) | 50 (22.7) |
*Product Flow rates are based on equipment test parameters.
**Call for other voltage options.
***Does not include operating space requirements.
| Operating Limits | |
|---|---|
| Maximum Feed Temperature °F (°C) | 85 (29.00) |
| Minimum Feed Temperature °F (°C) | 40 (4.44) |
| Maximum Ambient Temperature °F (°C) | 120 (48.89) |
| Minimum Ambient Temperature °F (°C) | 40 (4.44) |
| Maximum Feed Pressure psi | 85 |
| Minimum Feed Pressure psi | 45 |
| Maximum Operating Pressure psi | 120 |
| Maximum SDI Rating SDI | < 3 |
| Maximum Free Chlorine ppm | 0 |
| Maximum TDS ppm | 1000 |
| Maximum Hardness gpg | 1 |
| Maximum pH (Continuous) | 11 |
| Minimum pH (Continuous) | 3 |
| Maximum pH (Cleaning 30 min) | 12 |
| Minimum pH (Cleaning 30 min) | 2 |
| Maximum Turbidity NTU | 1 |
Test Parameters: *550 TDS Filtered (5 Micron), De-Chlorinated, Municipal Feed Water, 100 psi (6.89 bar) Operating Pressure, 77 Degrees F (25 Degrees C), Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation. Scale prevention measures must be taken to prolong membrane life.
Low temperatures and high feed water TDS levels will significantly affect system’s production capabilities. Performance projections should be run for individual applications which do not meet or exceed minimum and maximum operating limits.
